Dock - General
Product Name

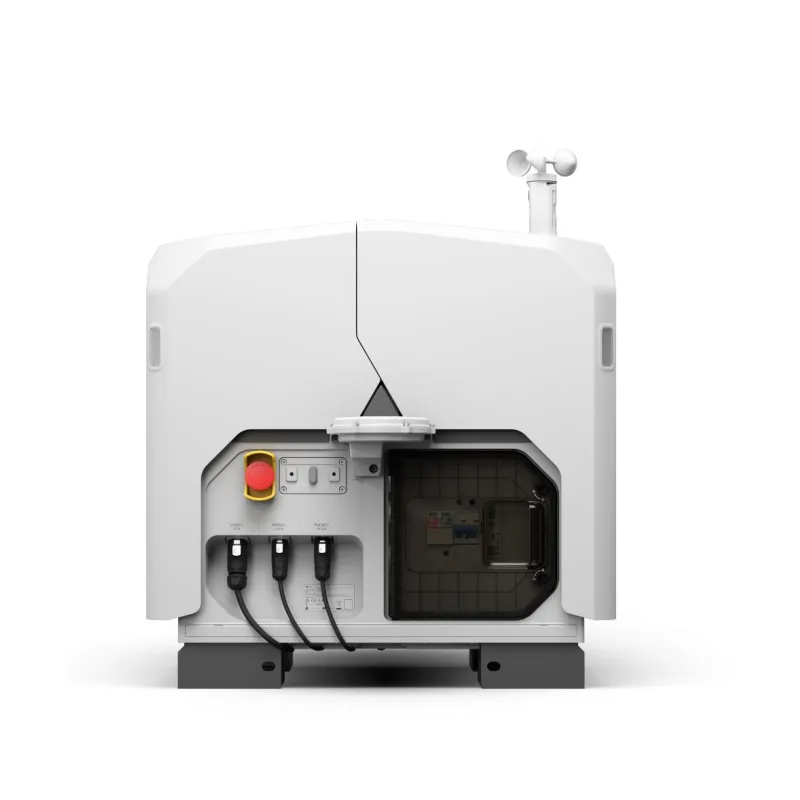

DJI Dock 3
Total Weight
55 kg (without aircraft)
The actual product weight may vary due to differences in batch materials and external factors.
Dimensions
Dock Cover Opened: 1760×745×485 mm (L×W×H)
Dock Cover Closed: 640×745×770 mm (L×W×H)
All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm).
Input Voltage
100-240 V (AC), 50/60 Hz
Input Power
Max 800 W
Operating Temperature
Ingress Protection Rating
IP56
Number of Drones Accommodated
1
Max Allowable Landing Wind Speed
12 m/s
Max Operating Altitude
4500 m
Receiving Frequency of RTK Base Station Satellite
Simultaneously receive:
GPS: L1 C/A, L2, L5
BeiDou: B1l, B2l, B3l, B2a, B2b, B1C
GLONASS: F1, F2
Galileo: E1, E5a, E5b, E6
QZSS: L1, L2, L5
Positioning Accuracy of RTK Base Station
Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
Dock - Charging Performance
Output Voltage
35 V DC
Charging Time
27 minutes
The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.
Dock - Video Transmission
Operating Frequency
2.400-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz
The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.
Antenna
Built-in 9 antennas, 2T4R, supports intelligent switching
Transmitter Power (EIRP)
2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE)
5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)
Dock - Air Conditioning System
Operating Voltage
48 V DC
Air Conditioning Type
Compressor-based air conditioning
Dock - Backup Battery
Battery Capacity
12 Ah
Output Voltage
12 V
Battery Type
Lead-acid battery
Battery Life
> 4 hours
Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.
Dock- Network Access
Ethernet Access
10/100/1000Mbps adaptive Ethernet port
4G Access
Requires DJI Cellular Dongle 2
Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
Dock - Sensor
Wind Speed Sensor
Supported
Rainfall Sensor
Supported
Ambient Temperature Sensor
Supported
Water Immersion Sensor
Supported
In-Cabin Temperature Sensor
Supported
In-Cabin Humidity Sensor
Supported
Dock - Security Camera (External)
Resolution
1920×1080
Field of View (FOV)
151°
Auxiliary Light
Auxiliary White Light
Dock - Security Camera (Internal)
Resolution
1920×1080
FOV
151°
Auxiliary Light
Auxiliary White Light
Dock- Lightning Protection
AC Power Port
20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class ? protection level requirements
Ethernet Port
10 kA (Itotal),meets EN/IEC 61643-21 Category C protection level requirements
Dock - Supported Software
Applications
DJI Enterprise app (used with Android phones for deployment and commissioning)
Cloud Platform
FlightHub 2
FlightHub 2 On-Premises Version
FlightHub 2 FlightHub Sync
DJI Cloud API
Dock - Expansion Capability
Edge Computing
Supports data communication with external switches
